Large Multi-Appliance Hoods & Oven Hoods are NO LONGER AVAILABLE. All installations of Giles Ventless Recirculating Hoods must comply with the limitations of their UL certifications, regarding cooking appliances used under the hoods, and must meet minimum requirements for kitchen size/area, ceiling height, fresh air supply, minimum room air exchange rate, supplemental exhaust ventilation, dimensional clearances, and other stipulations as specified in Giles Hood Approval Letter which must be fully completed, submitted and approved by Giles before orders will be accepted and processed. Use of ventless recirculating air cleaning equipment also requires approvals of local Authorities Having Jurisdiction (AHJ), prior to installation.

Recirculating Ventless Free-Standing Hoods

Product

FSH-2

Product

FSH-2A-99

Product

GVH-F

Use at Non-Traditional Sites
Ventless Technology UL710B Certified
Fire Suppression System
Easy Installation

Giles Free-Standing Ventless Hoods are certified Type-1 recirculating hoods featuring our proven Ventless Technology. Should there be need to add hood space in your kitchen, one of these alternatives possibly can avoid the need for expensive kitchen modifications & costly ductwork required to vent an additional hood to the outside. While not suitable for every situation ... these hoods often can be used to develop food service opportunities in many non-traditional sites where previously they were not feasible, or impossible ... traditional vented hoods, however, should always be the first alternative considered.

PRODUCT OPTIONS: FSH-2, FSH-2A-99, GVH-F,

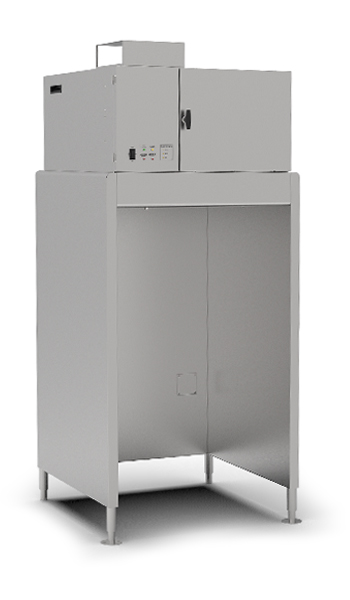

GVH-F:

  • 32” wide, innovative Ventless Hood mounted on a self-supporting Floor Stand.
  • UL listed for use with a variety of electrically heated floor model cooking appliances … Fryers, Cook-tops, Griddles, Toasters, and Ovens.
  • 3-Stage Air Cleaning System features high-efficiency Double-sided Baffle Filter, Electrostatic Air Cleaner and Activated Charcoal Filter to help control cooking aromas in the cleaned recirculated air. Exceeds emission requirements for grease-laden vapor; listed to UL YZCT (-7 for Canada), complies with ANSI/UL710B.
  • Durable easy-to-clean stainless steel construction.
  • Add optional interlocked Appliance Power Receptacles (50A max) to help minimize on-site installation work.
  • Equipped with an Electronic Air Cleaner (E.A.C.) Cleaning Timer ... helps operators maintain the collector cell with the timely & effective cleaning routine to keep the E.A.C. system operating at peak performance.
  • The hood is factory pre-plumbed with piping, discharge nozzles, fusible link detector brackets, cable conduit & wire rope and is ready to be connected to a, customer provided, approved fire suppression system (Ansul R102 wet chemical). Purchase of the system, field installation/set-up, testing & commissioning is completely the responsibility of the customer ... not included with purchase.

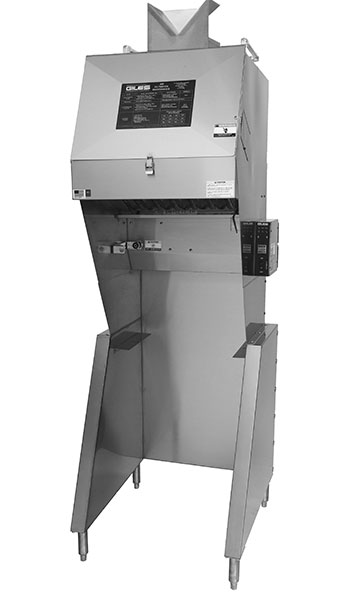

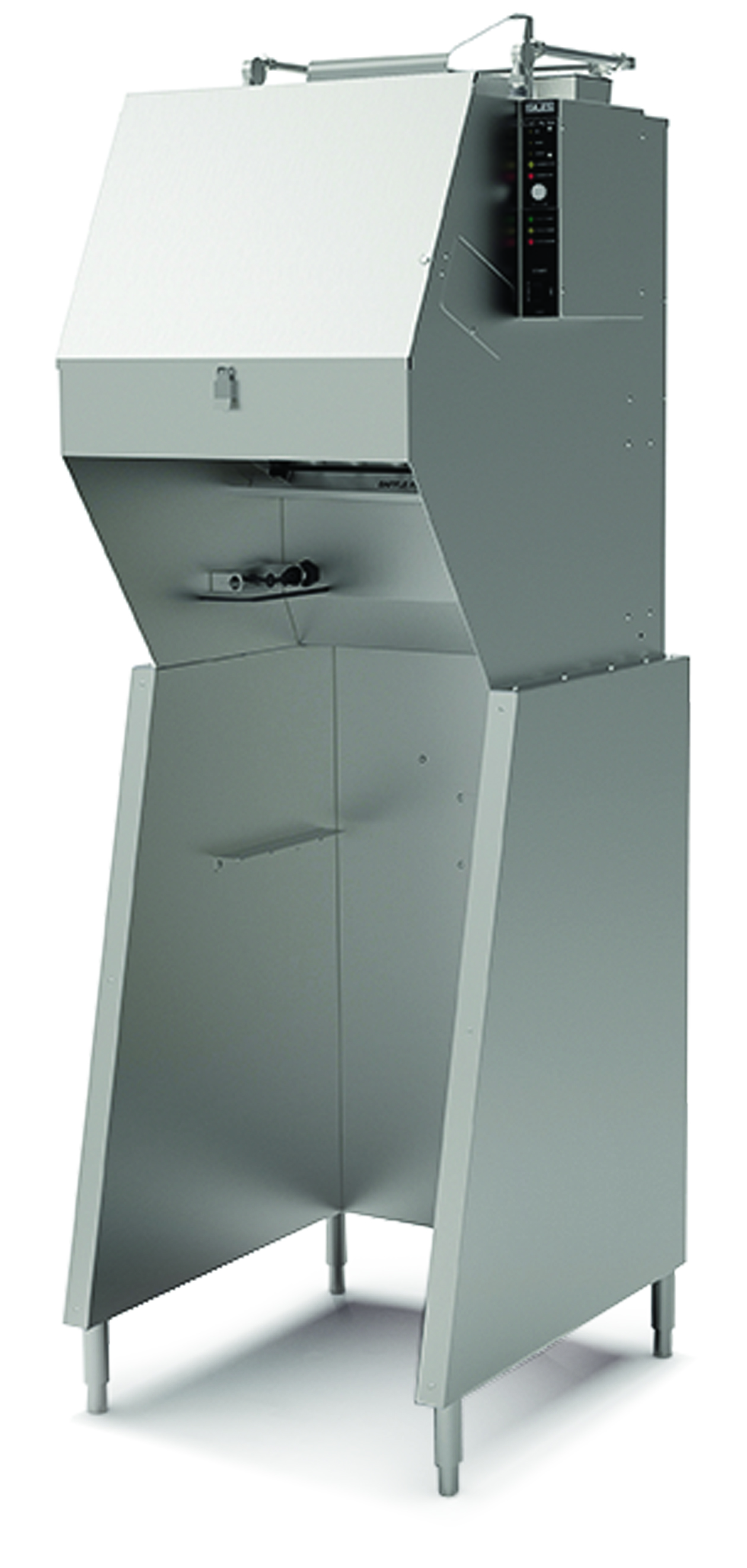

FSH-2:

  • 24” wide, Type-1 Ventless Hood with a self-supporting Floor Stand.
  • Listed for use only with a variety of electric, floor model, deep fryers (not suited for fryers with automatic basket lift mechanism).
  • 3-Stage Air Cleaning System features stainless steel Baffle Filter, Electrostatic Air Cleaner, and Activated Charcoal Filter to help control cooking aromas in the recirculated air. Meets grease-laden vapor emission requirements; listed to UL YZCT (UL YZCT-7 in Canada), complies with ANSI/UL710B
  • All durable stainless steel construction.
  • Portable ... easily moved with minimal disruption.
  • Accommodates appliance widths of 10-1/8” to 24-1/8”. Refer to specification sheet for limitations regarding appliances to be used under Hood.
  • Self-contained, on-board, Ansul® R102 wet chemical fire suppression system. Factory-installed except for fusible link detectors, chemical suppressant & firing cartridge. Final field set-up, testing & commissioning must be performed by an authorized Ansul Distributor/Dealer & must be supplied by the Customer, not included with hood purchase.

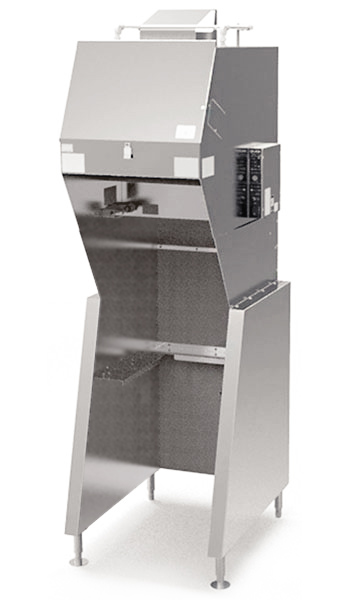

FSH-2A-99:

  • The same Ventless Hood concepts, features and listings as the Model FSH-2.
  • A higher profile unit with enough under-hood headroom to accommodate most Pressure Fryers on the market, as well as allow the use of Fryers equipped with automatic basket lift mechanisms.
  • Requires only 8’6” ceiling height.
  • Equipped with an Electronic Air Cleaner (E.A.C.) Cleaning Timer ... helps operators maintain the collector cell with the timely & effective cleaning routine required to keep the E.A.C. system operating at peak performance.
