GEF Series / GGF Series
Round Kettle Fryers
Electric: GEF-400, GEF-560,
GEF-720
Gas: GGF-400, GGF-720
Efficient Cooking
Highly Productive
Automatic Basket Lift
On-Board Oil Filtration
KitchenTrac® Remote Monitoring Available

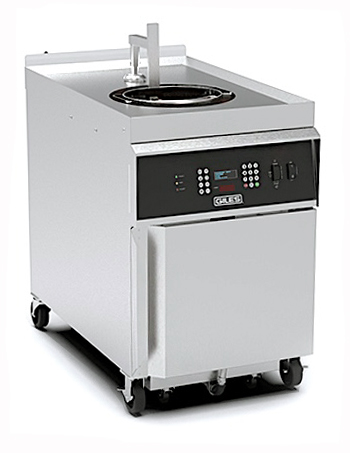

Giles Round-pot Kettle Fryers are designed to fry foods quickly & easily to deliver maximum profits with minimum effort & expense. Serve your customers delicious crispy & moist fried chicken every time.
- Consumes minimal amount of floor-space, yet has plenty of capacity to feed hungry crowds.
- Durable robust double-wall cabinet design ... 5” casters provide easy mobility. Fryer passes easily through a standard door opening. Front casters have locking wheel brakes for stability.
- Easy to clean & maintain ... electro-polished stainless steel Cooking Basket.
- Circular heating elements, or heat exchanger, surrounds product & provides rapid temperature recovery, even with frozen product.
- Computer Controller with intuitive user interface, provides exceptional fryer control and operation monitoring. Stores up to 50 programmable Menu Item cooking presets, Auto-Cool energy-saving mode, Force-Filter feature, Boil-Out program, password security option & multiple display language selections.
- Standard Automatic Basket Lift automatically lowers basket when cook cycle starts & raises it when the programmed cook time ends … helps avoid over-cooking.
- Convenient on-board oil filtration system features a powerful 1/2-hp pump for quick & efficient filtering.
- Best for fried chicken, but not just for chicken … cook many other fried favorites, as well.
-
Model GEF-400 (Electric) / GGF-400 (Gas):
- Electric – 10 kW cooking power.
- Gas – Natural or Propane … 45,000 BTU … Qualifies for “ California Energy Wise Rebate”.
- Oil capacity: 45 lbs (20.4 kg) liquid shortening.
- Product capacity: 14 lbs (6.4 kg) cut chicken.
-
Model GEF-560 (Electric) … Gas Model Not Available:
- Electric – 15 kW cooking power.
- Oil capacity: 60 lbs (27.2 kg) liquid shortening.
- Product capacity: 19 lbs (8.6 kg) cut chicken.
-
Model GEF-720 (Electric) / GGF-720 (Gas):
- Electric – 20 kW cooking power.
- Gas – Natural or Propane … 85,000 BTU … Qualifies for “ California Energy Wise Rebate” … energy-saving dual burner system.
- Oil capacity: 75 lbs (34.0 kg) liquid shortening.
- Product capacity: 24 lbs (10.9 kg) cut chicken. LARGEST CAPACITY IN ITS CLASS .
