GBF Series
Square Vat Banked Fryers

GBF-35X2 / X3, GBF-50X2 / X3

GBF-70X2 / X3

GBF-80GX2 / X3

Rapid Recovery
Increase Capacity
Offers Menu Versatility
On-Board Oil Filtration
KitchenTrac^® Remote Monitoring Available

PRODUCT OPTIONS: GBF-35X2 /X3, GBF-50X2 / X3, GBF-70X2 / X3, GBF-80GX2 / X3

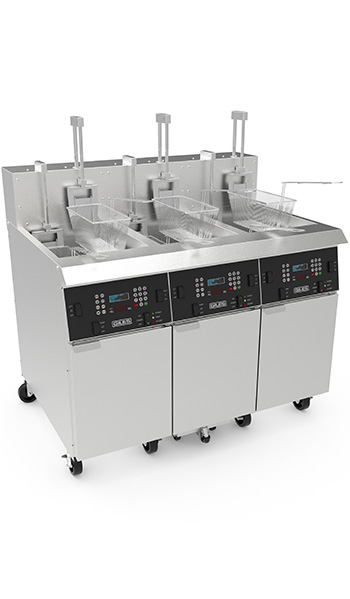

For increased capacity, these versatile electric & gas fryers can be banked into 2 or 3-well batteries, but are still perfect for the smaller kitchen. Cook larger amounts of your varied fried food menu favorites quickly and easily. All of these units have rapid temparature recovery time, enabling them to easily turn more loads per hour during those higher demand sales periods.

NOW AVAILABLE - THE NEWLY DESIGNED, GAS-FIRED, SQUARE-VAT FRYER!! ... GBF-80G

• Plenty of cooking power in small to medium size fryers.
• Rapid temperature recovery, even when cooking frozen products, yielding more turns per day.
• Computer Controller with intuitive user interface ... provides accurate control & monitoring. Features: dual timers ... (50) programmable cook cycle presets, energy saving cool-Mode ... Forced Filter control ... Boil-out program ... Low oil level interlock. Continuously monitors for alarm conditions. Optional password security & multiple display language choices.
• On-board, centralized, oil filtration system with powerful 1/2-hp pump for quick & efficient filtering of all fryer wells.
• GBF-35 requires only 35-lbs of oil, resulting in lower cost of operation ... perfect for fries & veggies.
• GBF-50, 70 & 80G have deep “cool zones” to prevent carbonization of crumbs, helping to extend oil life & improve food quality.
• Heavy-duty casters with front locking brakes.
• Optional Automatic Basket Lifts ... automatically lowers & raises cooking baskets at the beginning & end of cooking cycles. Lifts can be added to the full battery or only to selected units ... Manual basket hanger racks are standard.
• Optional Oil Top-Off system allows operator to replenish oil from either an on-board fresh oil supply or from a user-provided bulk oil system.
• Optional Oil Plumbing provides capability to directly connect fryer to a user-provided bulk oil management system ... fresh supply & waste disposal connections are available separately, or combined.
• Optional KitchenTrac^® Remote Monitoring – WIFI connectivity for remote monitoring of your connected fryers ... provides real-time equipment performance analytics, operational status, sales trends, equipment upkeep activites & much more.

Model GBF-35X2 / X3, GBF-50X2 / X3:

• Overall unit width: 2-well: 32-1/2” ... 3-well: 48-3/4”
• 2 or 3-well battery … 229 sq.in. (14” wide) vats ... oil capacity 35 lbs. (15.9 kg) ... 50 lbs. (22.7 kg) of liquid shortening each full vat.
• Electrical specification: 18,000W, 208V-240V/60/3-Ph ... 10,000W, 208V-240/60/3-Ph ... 10,000W, 208V-204V/60/1-Ph; each well requires separate power supply.
• Product capacity each well (reference only): french fries: 5 lbs. (2.3 kg) ... cut chicken: 7 lbs. (3.2 kg) or 12 lbs. (5.4 kg) each well.

Model GBF-70X2 / X3:

• Overall unit width: 2-well: 41-3/4” ... 3-well: 51-13/16”
• 2 or 3-well battery … 355 sq.in. (18-1/8” wide) vats ... oil capacity 70 lbs. (31.8 kg) of liquid shortening each full vat.
• Electrical specification: 20,000W / 208V-240V-480V/60/3-Ph ... (1-phase not available).
• Product capacity each well (reference only): french fries: 5 lbs. (2.3 kg) ... cut chicken: 21 lbs. (9.5 kg) each well.

Click here to learn more.

Model GBF-80GX2 / X3:

• Overall unit width: 2-well: 40-5/8” ... 3-well: 62-3/8”
• 2 or 3-well battery … 342 sq.in. (18” wide) vats ... oil capacity 80 lbs. (36.2 kg) of liquid shortening each full vat.
• Patented high efficiency Heat Exchanger design - US Patent 10,928,140 B2 ... Qualifies for the California Energy Wise Rebate program
• Fuel gas & heat output: Natural or LP gas ... 80,000 BTU
• Electrical specification: 120V/60/1-Ph (power cord provided).
• Product capacity each well (reference only): french fries: 5 lbs. (2.3 kg) ... cut chicken: 26 lbs. (11.8 kg) each well (w/o baskets).
